Copper with Tin Plated Photovoltaic Connector for Energy Storage
Solar Applications
Product Description:

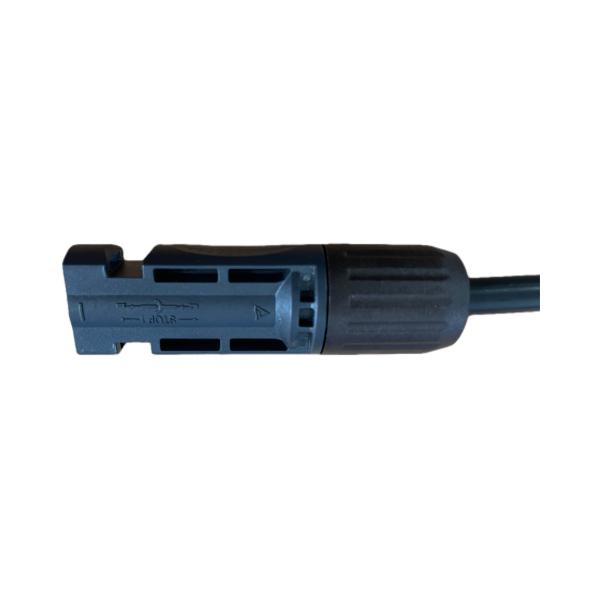

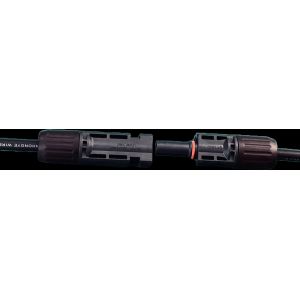

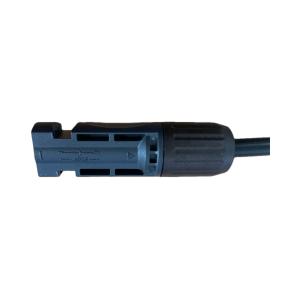

The PV-BK1500V Photovoltaic Connector is suitable for wire sizes of
2.5mm², 4mm², and 6mm², providing flexibility for various
installation requirements. With a rated voltage of 1500 VDC, this
connector can handle high voltage loads with ease. It also has a
high Ip rating of IP65/IP68, making it resistant to dust and water
ingress, ensuring its longevity.
This product has a temperature range of -40℃ to +85℃, with some
models having a range of -40℃ to +90℃, ensuring its reliability
under various weather conditions. The connector has a rated current
of either 35A or 39A, depending on the model, making it suitable
for high current applications. The insulation material used is of
high quality, ensuring the safety of the installation and the
longevity of the product.
The BOKANG PV-BK1500V Photovoltaic Connector is suitable for
various occasions and scenarios, including residential, commercial,
and industrial solar panel installations. It is perfect for use in
both on-grid and off-grid systems, providing flexibility for users.
The product comes in a carton box packaging, ensuring its safety
during transportation. The delivery time is as required, and
payment terms are negotiable, providing convenience for customers.
The supply ability is also as required, ensuring that customers can
get the product when they need it.
Features:
- Product Name: Photovoltaic Connector
- Contact Material: Copper; Tin-plated
- Type: PV Module
- Rated Current: 39A/35A
- Rated Voltage: 1500 VDC
- Flame Rating: V-0; 5VA
- IP68 Rating
- Suitable for Solar Energy Applications
Technical Parameters:
| Technical Parameter | Value |
|---|
| Rated Current | 39A/35A |
| Certifications | TUV, UL |
| IP Rating | IP65/IP68 |
| Temperature Range | -40℃ To +85℃; -40℃~+90℃ |
| Wire Size | 2.5mm²,4mm²,6mm² |
| Rated Voltage | 1500 VDC |
| Contact Material | Copper; Tin-plated |
| Insulation Material | PPO/PA |
| Safety Class | ClassⅡ |
